Intro
The plan is to clean up the cellar and use Odoo's inventory and warehousing for this as an exercise.
We want to put everything into boxes, both things that we can sell as things that we use: tools and skrews.
Each box will get a bar-code and a location-code so that we can use the mobile phone Odoo bar scanner app to add/remove things that are sold, like K600 markers etc.
It is a nice project and it will finally put some order to the "MotoKot"

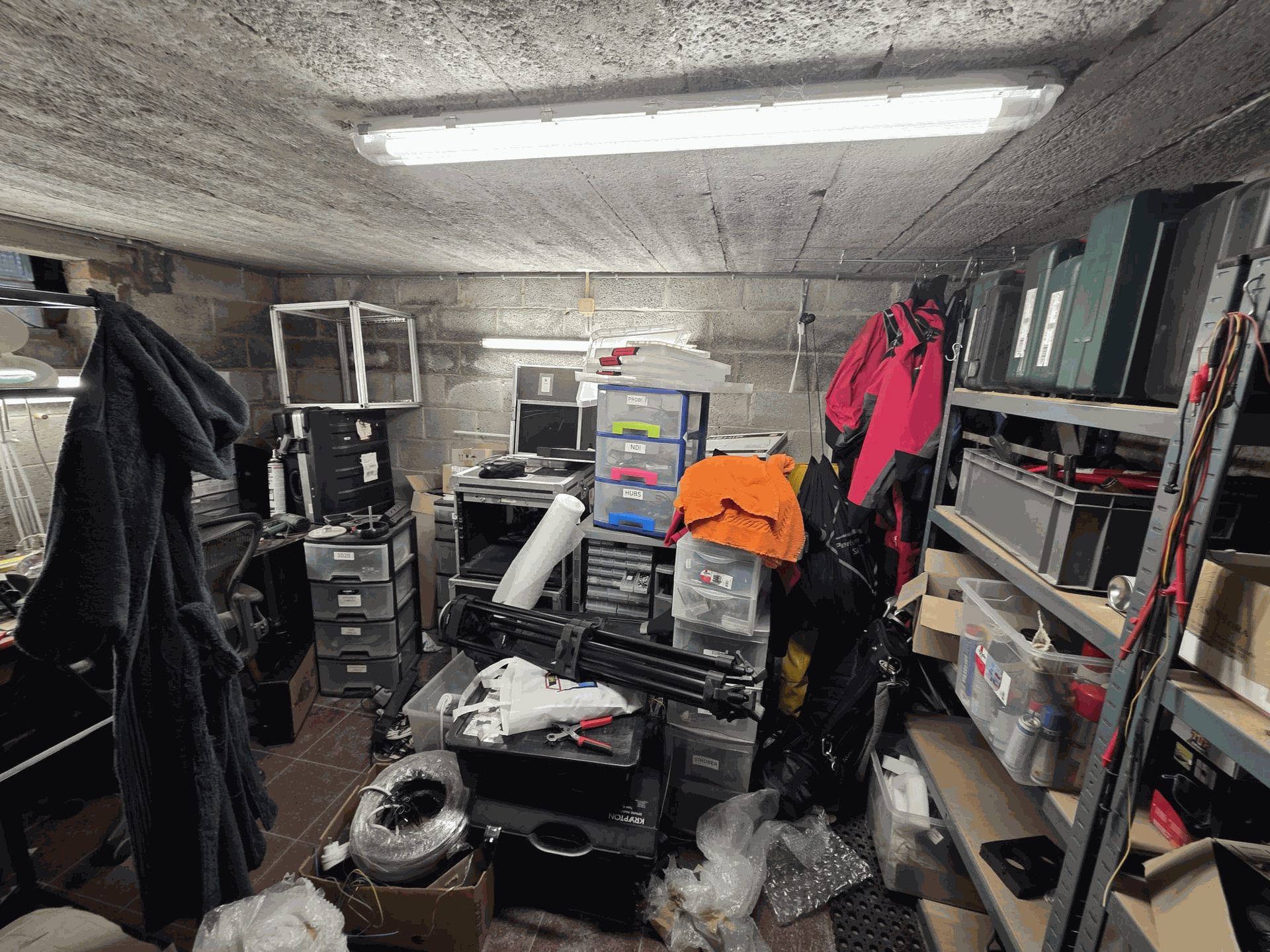

So we hope to go from this

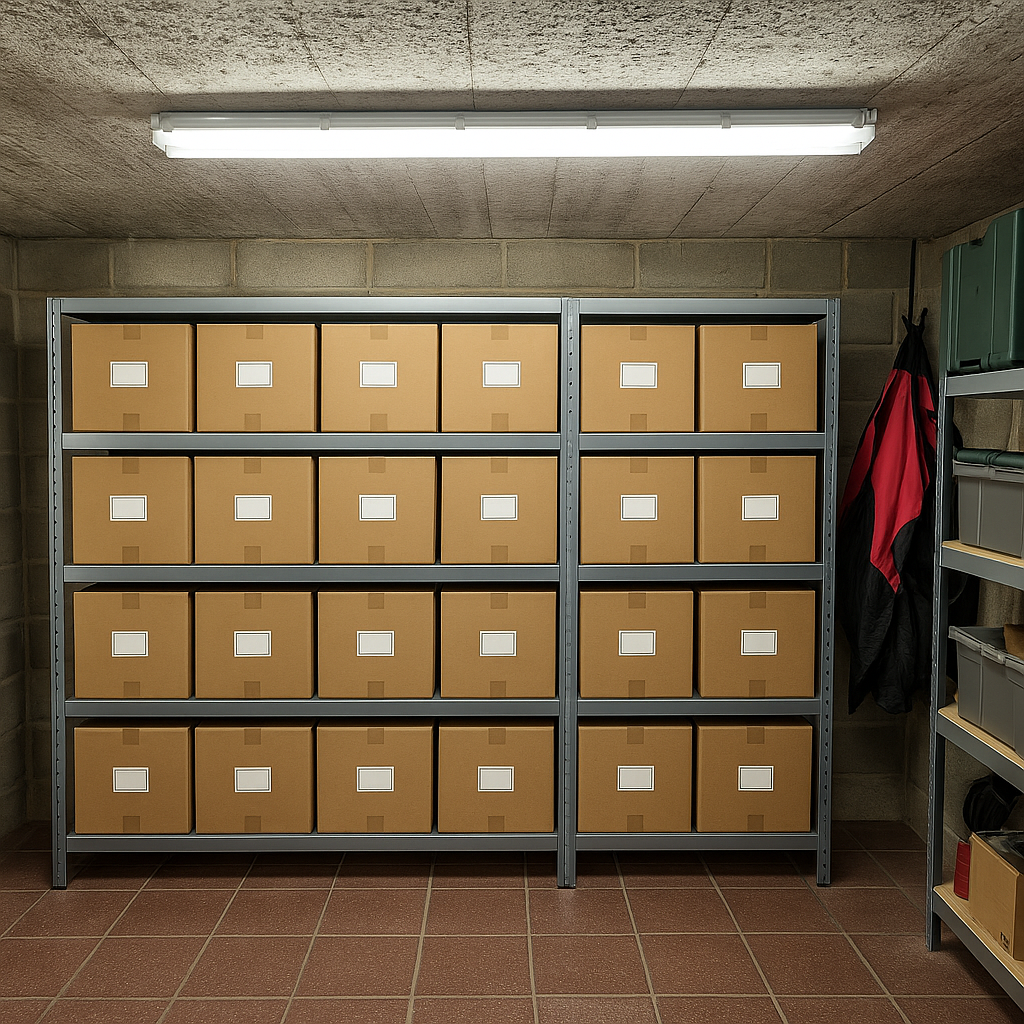

to this
Creating the locations
We have:
- 2 places
- each place has a number of racks
- each rack has a number of shelves
- each shelf can hold a number of boxes
Stuff will go inside these boxes, so we want to be able to find 'stuff' back by search operation and getting a location of the box.
ChatGPT conversation
https://chatgpt.com/share/68f0df0e-1b64-800b-a313-d17974f6f6fc
Setting up the warehouse
First we need to activate the warehouse functions
Enable:
- Inventory->Warehouse -> Storage Locations
- Possibly enabel serial numbers Inventory->Traceability->Lots&Serial number
Creating the locations
We use our own MCP server connected to the https://edu-ctech.odoo.com database.
In claude desktop we gave the next prompt
using the Odoo MCP server , create the next warehouse locations:
* there are 2 rooms : Garage and MotoKot
* each room has 3 racks
* each rack has 4 shelves
* on each shelf there are 5 boxes
Create all warehouse locations using this hierarchie. If you find the functionality in the MCP to be insufficient, then give me a prompt that I can use to extend the MCP API tools based on what is available here : https://edu-ctech.odoo.com/doc
Here is a transcript of the execution, interesting to see.
The current state of the MCP server was sufficient to execute this task, although I needed to restart Claude once as it had tripped.
Creating Barcodes
i tried the same approach to create barcodes based on the combined parent-box names.
So the box with the full path
WH/Stock/Garage/Rack 1/Shelf 1/Box 4
Would have as barcode text
GAR-R1-S1-B4
The MCP worked for about 64 boxes, not for all 120.
So we take another approach
Using studio to place a button in the list view

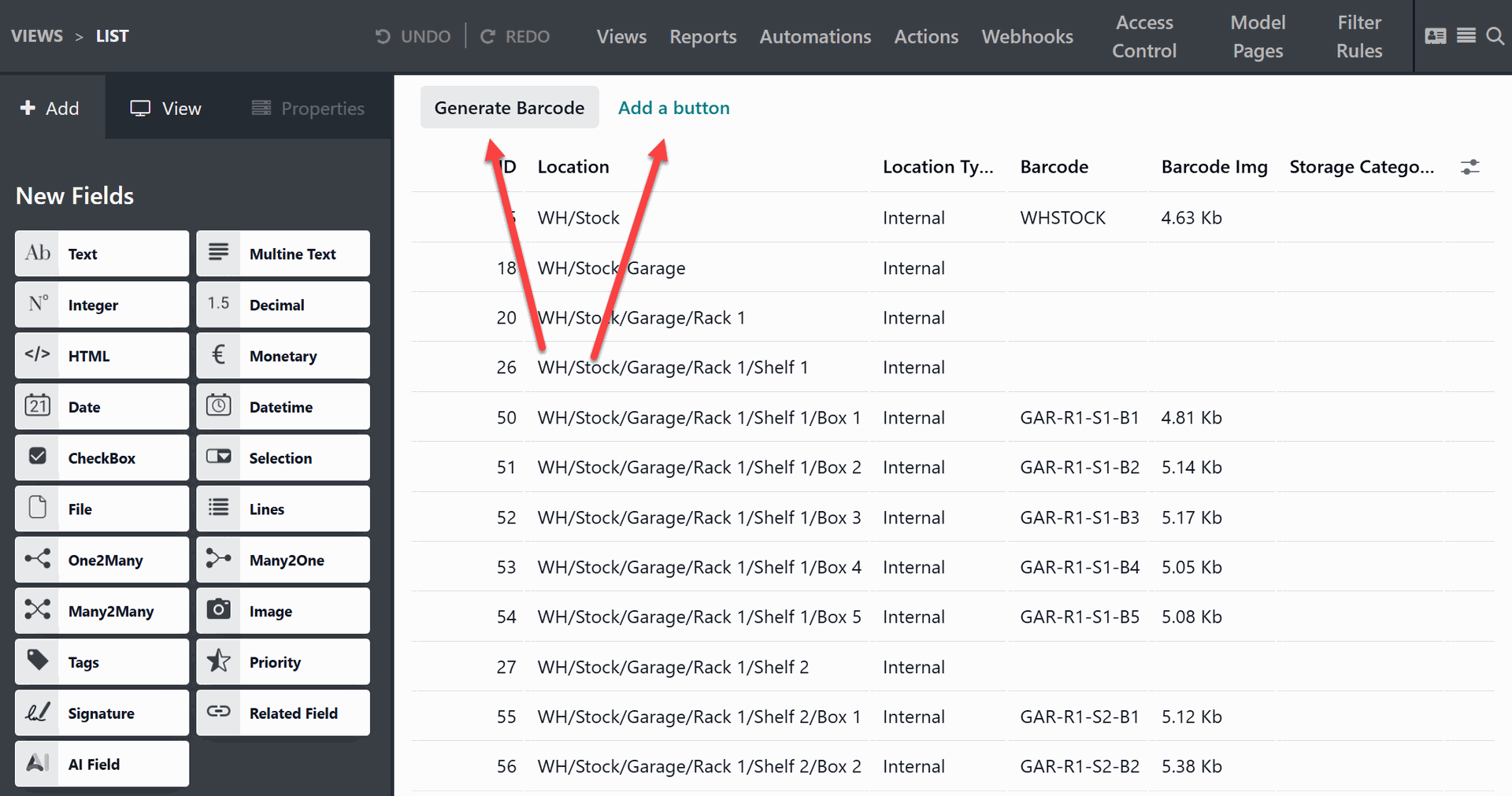

I the list view we start Studio and add a button "Generate Barcode"
Set the label and set for "What should the button do" take "Run a server Action"

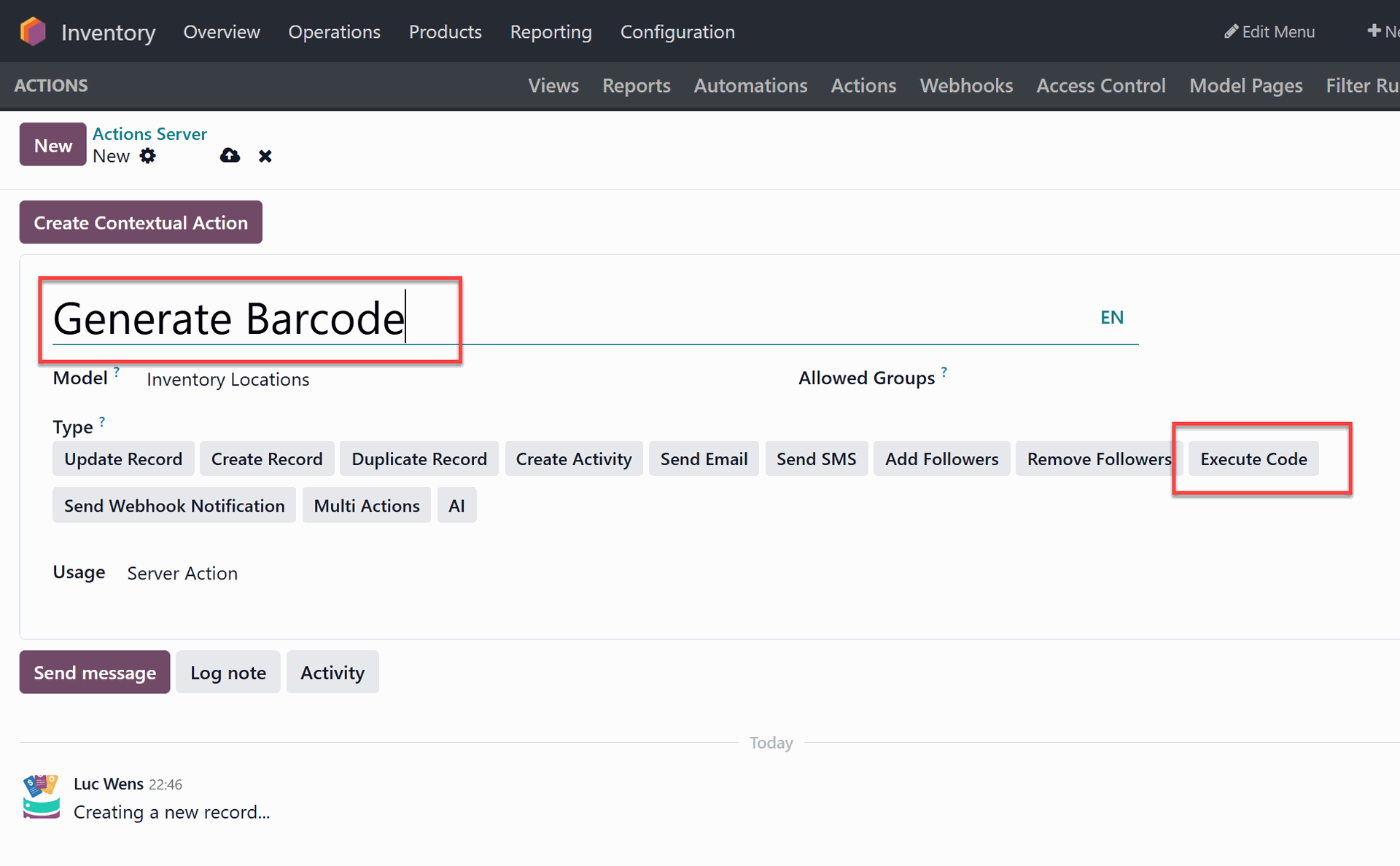

Then create a new Action that executes code
Claude helped us with the python stuff
# Generate barcodes for stock locations based on hierarchy
# Format: ROOM-R{rack}-S{shelf}-B{box}
for record in records:
# Only process if barcode is empty and name contains "Box"
if not record.barcode and "Box" in record.name:
# Extract box number from name (e.g., "Box 1" -> "1")
box_num = record.name.replace("Box ", "").strip()
# Navigate up the hierarchy
shelf = record.location_id # Parent is shelf
rack = shelf.location_id if shelf else False # Grandparent is rack
room = rack.location_id if rack else False # Great-grandparent is room
# Verify we have the complete hierarchy
if shelf and rack and room:
# Extract numbers from parent names
shelf_num = shelf.name.replace("Shelf ", "").strip()
rack_num = rack.name.replace("Rack ", "").strip()
room_name = room.name.strip()
# Determine room code
if "Garage" in room_name:
room_code = "GAR"
elif "MotoKot" in room_name:
room_code = "MOT"
else:
room_code = "ROOM" # Fallback for unknown rooms
# Generate barcode in format: ROOM-R#-S#-B#
barcode = f"{room_code}-R{rack_num}-S{shelf_num}-B{box_num}"
# Set the barcode using write() method
record.write({'barcode': barcode})

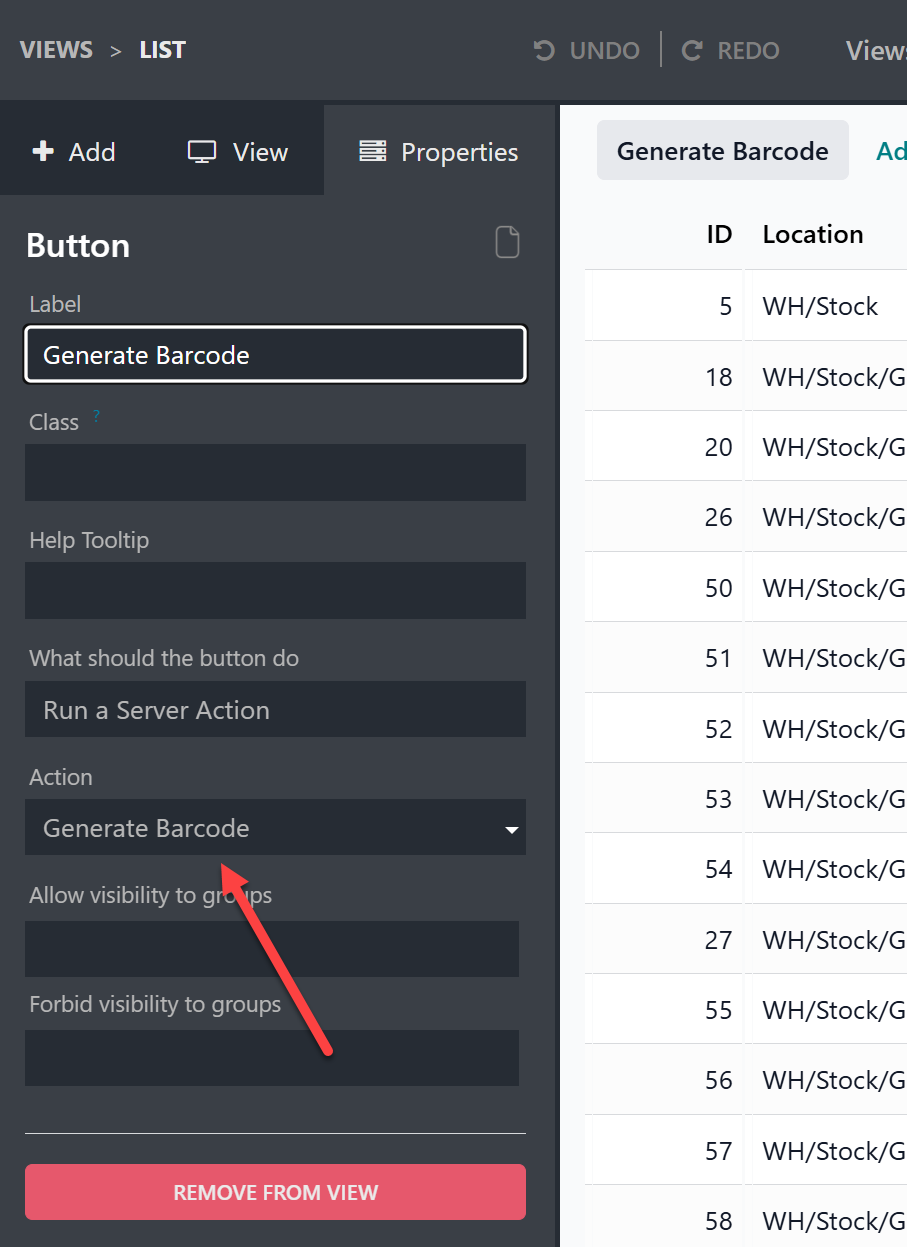

Then go back to the list view button and select this action.
Then we can close studio and in the list view select all the locations filtered down with "/Box" and click the "Generate Barcode" button.
Printing barcodes
In listview you can select with a filter Barcode isset to select all items with barcodes and then print. This will generate PDF's with labels in 4 columns 7 rows.

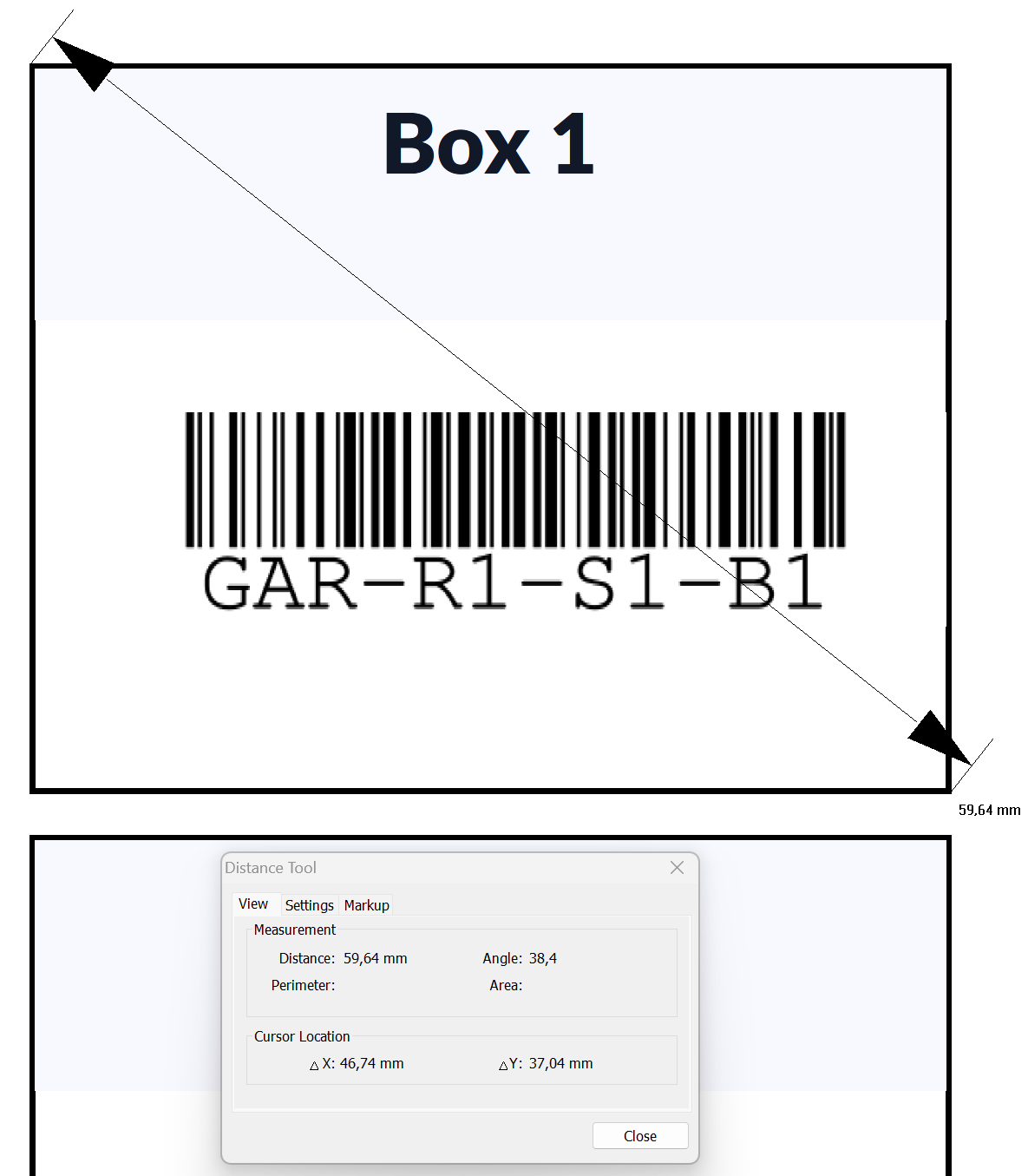

Here is an example

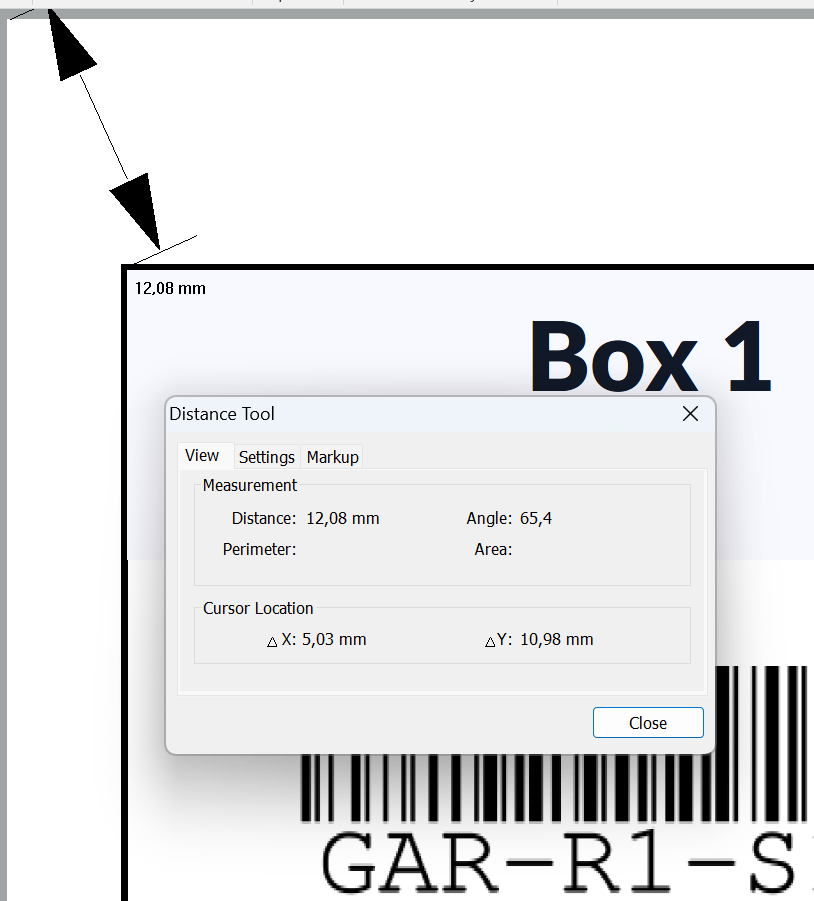

The label sizes are 52mm x 40mm (2"x1.5")
These guys in Ireland provide custom labels
Finding racks and boxes
A task delegated to ChatGPT :
https://chatgpt.com/share/68f0df0e-1b64-800b-a313-d17974f6f6fc
In motokot I have one wall where I can place a new rack.
The available space is 300 cm wide, 70 cm deep.
Here is the proposed stuff:
Rek(ken) – 60 cm diep, ±100 cm breed
Brico – Practo Heavy Duty Power MP18010060.5 (180×100×60 cm, 5 legborden, 260 kg/legbord) — EAN 5414045042713. Brico
GAMMA – Handson stellingkast met werkbank (180×100×60 cm, gegalvaniseerd) — alternatief met midden-legbord/werkblad. Gamma
GAMMA – Rek Heavy Duty 860 (±180×101×60 cm) — vergelijkbare maat/draagkracht. Gamma
(Eventueel ook: Heavy Duty 848 (200×100×50 cm) als 50 cm diepte gewenst/benodigd is.) Gamma
Kartonnen dozen – 60×40-voetafdruk (past ideaal 2 per legbord)
Brico – Pack And Move verhuisdozen 60×40×30 cm (pak van 40, dubbelwandig, met handgrepen) — EAN 3700377355945. Brico
(Als je meer hoogte wil: bij Brico bestaat ook 60×50×40 cm maar dat gebruikt de 60 cm rekdiepte volledig en is minder efficiënt in de breedte.) Brico
Aantal te bestellen (op basis van je rekconfiguratie)
2 rekken (zoals in de aangepaste render, links oplopend en rechts ruimte voor zeilmateriaal):
Dozen per legbord: 2 (60 cm diep × 40 cm breed)
5 legborden × 2 rekken = 20 dozen → bestel minstens 20 (praktisch: pak van 40 bij Brico).
3 rekken (wand van 300 cm volledig benutten):
5 legborden × 3 rekken = 30 dozen → bestel 30 (praktisch: pak van 40 bij Brico).
Samengevat besteladvies:
Rek(ken): 2–3× Practo Heavy Duty Power 180×100×60 cm (of GAMMA-alternatief boven).
Dozen: 20–30× kartonnen doos 60×40×30 cm (Brico Pack And Move).

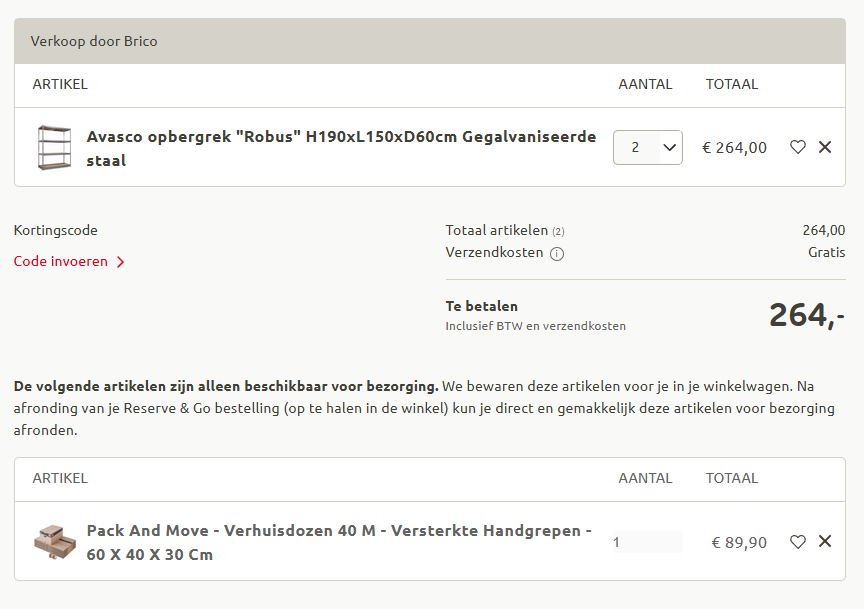

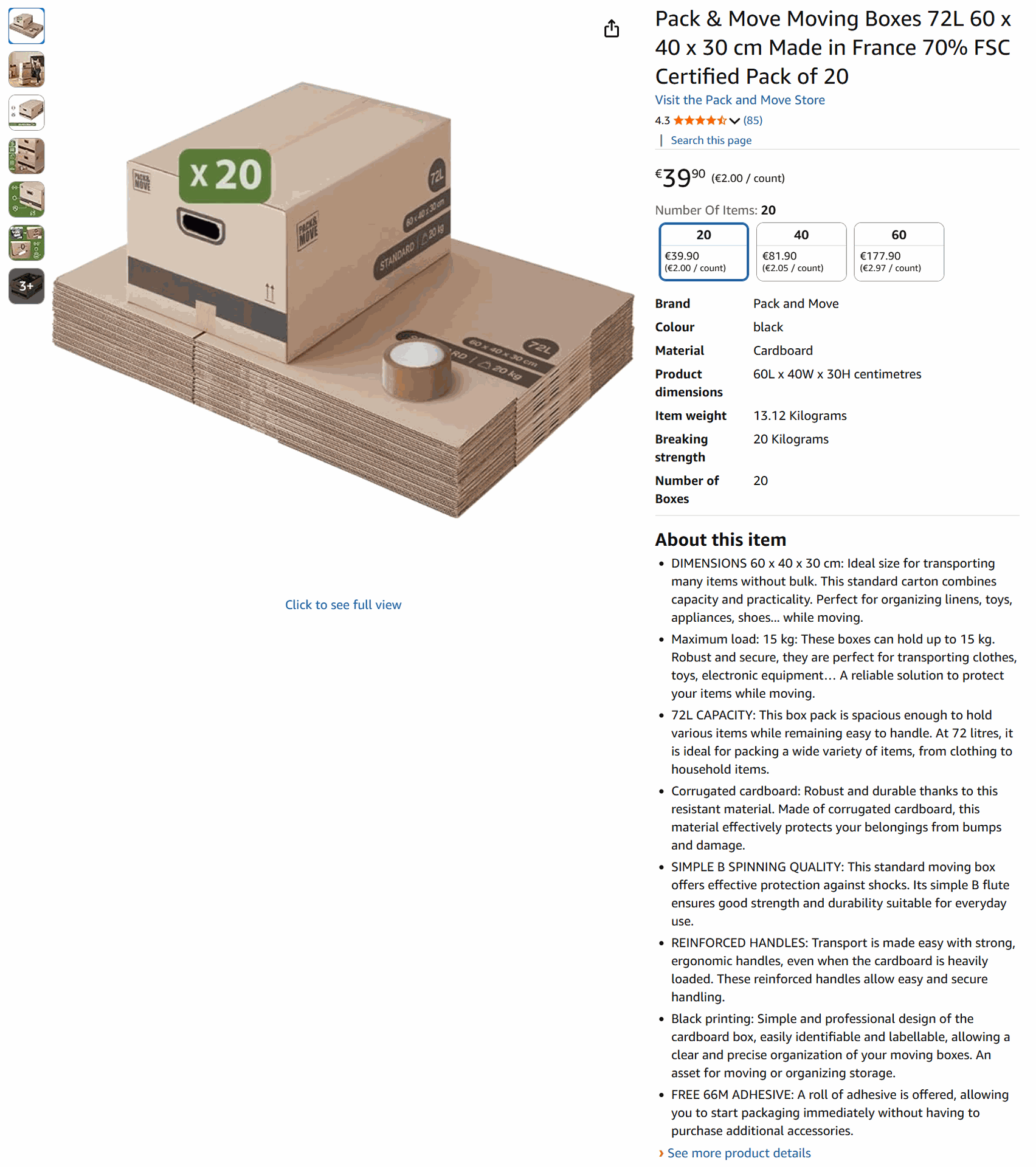

As the Brico webshop sucks big time, I bought these
